1. Merging Dialogs
This post explains, how you can extend the functionality of AEM Core Components. Part 1 focuses on the extension and reusability of the core components dialog.
TL:DR
There are two options which allow you to properly reuse Core Components dialogs, or snippets from it.
- Use sling:resourceSuperType to directly inherit
- Use Parameterized Namespace Granite Include to include a configurable path into your dialog.
Option 2 is the preferred way, if you want to, more or less, reused the original Core Component in addition to your own properties. Using namespace include, you've got the option inject the sling model from the component you have inherited from. More on this in Part 2.
Introduction
The 'AEM Core Components' Component Library consists of a wide range of basic author-able components. These can be used, to create and layout content pages without having to program 'the same things all over again'.
The latest Core Component Release can be downloaded from their GitHub Release page.
Each GitHub Release produces the following artefacts
In general, downloading the core.wcm.components.all-<version>.zip and installing it via
the JCR Package Manager is enough.
If you are running an AEM Cloud SDK, the Core Components will be preinstalled in /libs/wcm/core.
Core Components - Manual Installation
If you want to add the Core Components to your development environment and install via maven / pom.xml, a couple of additions have to be made. First of, we should add a version variable, then add the required pom dependencies. These need to be added to the root pom, the 'all' pom, 'core' pom and the 'ui.apps' pom file.
If you bootstrap your development environment via the maven AEM Project Archetype, this will have been done for you.
Root POM
<core.wcm.components.version>2.15.2</core.wcm.components.version>
<!-- [...] -->
<dependencies>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.core</artifactId>
<version>${core.wcm.components.version}</version>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.content</artifactId>
<type>zip</type>
<version>${core.wcm.components.version}</version>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.config</artifactId>
<type>zip</type>
<version>${core.wcm.components.version}</version>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.extensions.amp</artifactId>
<version>${core.wcm.components.version}</version>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.extensions.amp.content</artifactId>
<type>zip</type>
<version>${core.wcm.components.version}</version>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.examples.ui.apps</artifactId>
<type>zip</type>
<version>${core.wcm.components.version}</version>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.examples.ui.content</artifactId>
<type>zip</type>
<version>${core.wcm.components.version}</version>
</dependency>
</dependencies>
All POM
<root-element>
<embedded>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.content</artifactId>
<type>zip</type>
<target>/apps/mysite-vendor-packages/application/install</target>
</embedded>
<embedded>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.core</artifactId>
<target>/apps/mysite-vendor-packages/application/install</target>
</embedded>
<embedded>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.config</artifactId>
<type>zip</type>
<target>/apps/mysite-vendor-packages/application/install</target>
</embedded>
<embedded>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.extensions.amp.content</artifactId>
<type>zip</type>
<target>/apps/mysite-vendor-packages/application/install</target>
</embedded>
<embedded>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.extensions.amp</artifactId>
<target>/apps/mysite-vendor-packages/application/install</target>
</embedded>
<embedded>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.examples.ui.apps</artifactId>
<type>zip</type>
<target>/apps/mysite-vendor-packages/application/install</target>
</embedded>
<embedded>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.examples.ui.content</artifactId>
<type>zip</type>
<target>/apps/mysite-vendor-packages/content/install</target>
</embedded>
</root-element>
core POM
<!-- [...] -->
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.core</artifactId>
</dependency>
<!-- [...] -->
ui.apps POM
<dependencies>
<!-- [...] -->
<plugin>
<groupId>org.apache.jackrabbit</groupId>
<artifactId>filevault-package-maven-plugin</artifactId>
<configuration>
<group>com.fi</group>
<name>mysite.ui.apps</name>
<packageType>application</packageType>
<accessControlHandling>merge</accessControlHandling>
<repositoryStructurePackages>
<repositoryStructurePackage>
<groupId>com.fi</groupId>
<artifactId>mysite.ui.apps.structure</artifactId>
</repositoryStructurePackage>
</repositoryStructurePackages>
<dependencies>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.content</artifactId>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.config</artifactId>
</dependency>
</dependencies>
</configuration>
</plugin>
<!-- [...] -->
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.core</artifactId>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.content</artifactId>
<type>zip</type>
</dependency>
<dependency>
<groupId>com.adobe.cq</groupId>
<artifactId>core.wcm.components.config</artifactId>
<type>zip</type>
</dependency>
<!-- [...] -->
</dependencies>
Extending Image Core Component
Based on v2.15.2
Extending an AEM Dialog is (currently) possible using one of two methods. The first option extends the desired dialog / component directly, whereas the ACS-Commons variant "pulls" the properties into a configurable namespace, which allows sensible usage and delegation in the corresponding backend model. Both backend options will be described in Part 2 of this mini series.
Option 1 - slingResourceSuperType
Extending via resourceSuperType is as easy as refernecing the parent in the components .content.xml defintion
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0"
xmlns:cq="http://www.day.com/jcr/cq/1.0"
xmlns:jcr="http://www.jcp.org/jcr/1.0"
jcr:primaryType="cq:Component"
jcr:title="Extended Image Component"
sling:resourceSuperType="core/wcm/components/image/v2/image"
componentGroup="MySite - Content"/>
You then need to take a look at the original dialog structure, which can be found
here /libs/core/wcm/components/image/v2/image/cq:dialog. Copy/Paste this, remove the 'asset' and 'metadata' tab, since
these will be served from the inherited parent. You can now add your own dialog tab instead. The resulting dialog will
merge all tabs togther. Single tabs can be hidden via sling:hideChilden on the tabs 'items' node.
<tabs jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/tabs"
maximized="{Boolean}true">
<items jcr:primaryType="nt:unstructured"
sling:hideChildren="[asset]">
<!-- [...] -->
</items>
</tabs>
Using this method, all properties will be written directly to the components jcr:content node and need to be handeled manually in your sling model. As of now, no reusable OSGi Service exists to delegate logic to.
Option 2 - Parameterized Namespace Granite Include
Option 2 utilizes the ACS Commons Feature Parameterized Namespace Granite Include . This allows us, to include premade dialog sections in our components dialog, as well as nesting them under a given namespace / jcr node name. Due to this, we are able to include the same widget multiple times, as well as bundle all properties in a single child resource and use this to automatically inject based on the inherited sling model. For us, the latter is the important part. But more on this in Part 2.
<!-- ui.apps/src/main/content/jcr_root/apps/mysite/components/extendedimage/_cq_dialog/.content.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0"
xmlns:cq="http://www.day.com/jcr/cq/1.0"
xmlns:jcr="http://www.jcp.org/jcr/1.0"
xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
jcr:primaryType="nt:unstructured"
jcr:title="Extended Image"
sling:resourceType="cq/gui/components/authoring/dialog">
<content
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">
<tabs
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/tabs"
maximized="{Boolean}true">
<items jcr:primaryType="nt:unstructured">
<image
jcr:primaryType="nt:unstructured"
jcr:title="Asset"
sling:resourceType="acs-commons/granite/ui/components/include"
path="/libs/core/wcm/components/image/v2/image/cq:dialog/content/items/tabs/items/asset"
namespace="image"
margin="{Boolean}true"/>
<imageMetaData
jcr:primaryType="nt:unstructured"
jcr:title="MetaData"
sling:resourceType="acs-commons/granite/ui/components/include"
path="/libs/core/wcm/components/image/v2/image/cq:dialog/content/items/tabs/items/metadata"
namespace="image"
margin="{Boolean}true"/>
<ctaLinksContainer
jcr:primaryType="nt:unstructured"
jcr:title="CTAs"
sling:orderBefore="properties"
sling:resourceType="granite/ui/components/coral/foundation/container"
margin="{Boolean}true">
<items jcr:primaryType="nt:unstructured">
<columns
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns"
margin="{Boolean}true">
<items jcr:primaryType="nt:unstructured">
<column
jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">
<ctaLinks jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
composite="{Boolean}true"
fieldLabel="CTA Links">
<field jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container"
name="./ctaLinks">
<items jcr:primaryType="nt:unstructured">
<column jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/container">
<items jcr:primaryType="nt:unstructured">
<title jcr:primaryType="nt:unstructured"
fieldLabel="Title"
sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
name="./title"/>
<path jcr:primaryType="nt:unstructured"
sling:resourceType="granite/ui/components/coral/foundation/form/pathfield"
fieldDescription="Target Path"
fieldLabel="Target Path"
rootPath="/content/mysite"
name="./path"/>
</items>
</column>
</items>
</field>
</ctaLinks>
</items>
</column>
</items>
</columns>
</items>
</ctaLinksContainer>
</items>
</tabs>
</items>
</content>
</jcr:root>

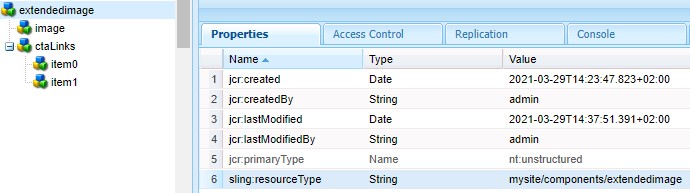

If added to a page and filled with data, the jcr node will be created like and look like this
Due to the parameterized namespace include, all included/referenced image v2 dialog nodes will be included in
the namespace="image"

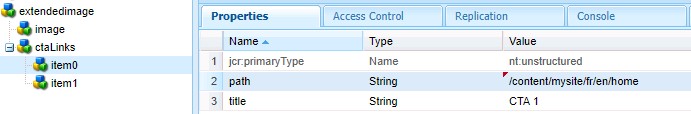

All custom added properties, in our case the ctaLinks Multifield, will be in their defined jcr properties, as expected and usual for any AEM component

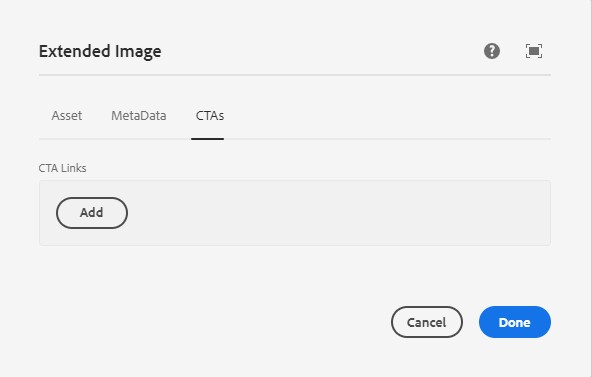

By implementing above solution, the result will look like the following image. We are reusing the inherited asset and metadata tabs, as well as our custom added tab for cta links
2. Extending the Java Backend
This post explains, how you can extend the functionality of AEM Core Components. Part 2 focuses on the backend extension and reusability of the core components already implemented logic.
TL:DR
By using two features from ACS Commons, we can easily reuse already implemented dialogs and logic from a core component, add additional properties and export it to the .model.json
We include snippets from the original dialog via Parameterized Namespace Granite Include and we inject the original sling model into our custom sling model via Child Resource From Request Injector.
Reuse Core Component Sling Model
We use the Child Resource From Request Injector to enable the injected Object to access a Sling Request. Therefore, the Image Core Component can correclty populate all its fields.
The ACS Commons website describes the injector as follows
This injector is similar to the standard @ChildResource injector provided by sling, but with a key difference in that it uses a mock request object pointed to the resource path as the adaptable, allowing the sling model to reference the request and other sling bindings not otherwise accessible when adapting a resource directly. This is particularly useful when injecting instances of WCM Core components, which are generally not adaptable from Resource and thus fail to inject via the standard @ChildResource injector.
This functionality enables us to create custom components, while reusing the core components at the same time. Usually in projects, an author would like to create complex components, consisting out of images, text, checkbox etc. This can now be done easily, while minimized code repetition.
@ChildResourceFromRequest
private com.adobe.cq.wcm.core.components.models.Image image;
Complete Class Example
This examples uses Lombok Annotations to avoid 'getter/setter' spam in simple Java pojo classes.
By injecting our 'image' object with the aformentioned acs injector, we levarge the full Core Components Image Component
Sling Model and (whatever) logic it uses itself. We can inject the 'ctaLinks' (check Part 1 for the dialog.xml) via a
regular @ChildResource, since we are passing untouched json data from the jcr to the .model.json.
// core/src/main/java/com/mysite/core/models/image/ExtendedImage.java
package com.mysite.core.models.image;
import com.adobe.acs.commons.models.injectors.annotation.ChildResourceFromRequest;
import com.adobe.cq.export.json.ComponentExporter;
import com.adobe.cq.export.json.ExporterConstants;
import lombok.Getter;
import lombok.Setter;
import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.resource.Resource;
import org.apache.sling.models.annotations.DefaultInjectionStrategy;
import org.apache.sling.models.annotations.Exporter;
import org.apache.sling.models.annotations.Model;
import org.apache.sling.models.annotations.injectorspecific.ChildResource;
import javax.annotation.PostConstruct;
@Model(
adaptables = SlingHttpServletRequest.class,
adapters = {ExtendedImage.class, ComponentExporter.class},
resourceType = ExtendedImage.RESOURCE_TYPE,
defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL)
@Exporter(name = ExporterConstants.SLING_MODEL_EXPORTER_NAME, extensions = ExporterConstants.SLING_MODEL_EXTENSION)
@Getter
@Setter
public class ExtendedImage implements ComponentExporter {
public static final String RESOURCE_TYPE = "mysite/components/extendedimage";
@ChildResourceFromRequest
private com.adobe.cq.wcm.core.components.models.Image image;
@ChildResource
private Resource ctaLinks;
public com.adobe.cq.wcm.core.components.models.Image getImage() {
return image;
}
@Override
public String getExportedType() {
return RESOURCE_TYPE;
}
}
Example Json Export
Implementing above Sling Model and the Component from Part enables us to create a custom Image component, ' extendedImage', which exportes all Core Components Image Component properties under the namespace 'image', as well as own additional properties.
{
"extendedimage": {
"image": {
"id": "some-id",
"alt": "my alt text",
"title": "my caption",
"src": "/content/mysite/fr/en/home/_jcr_content/root/responsivegrid/extendedimage/image.img.jpeg/1617021471391/myCustomImage.jpeg",
"link": "/content/mysite/fr/en/discover.html",
"type": "nt:unstructured",
"dataLayer": {
"some-id": {
"@type": "nt:unstructured",
"repo:modifyDate": "2021-03-29T12:37:51Z",
"dc:title": "my caption",
"xdm:linkURL": "/content/mysite/fr/en/discover.html",
"image": {
"repo:id": "3227649d-917f-461f-afc6-7d545d51cb33",
"repo:modifyDate": "2021-03-22T15:21:43Z",
"@type": "image/jpeg",
"repo:path": "/content/dam/mysite/discoverpage/myCustomImage.jpeg",
"xdm:tags": [],
"xdm:smartTags": {}
}
}
}
},
"ctaLinks": {
"jcr:primaryType": "nt:unstructured",
"item0": {
"jcr:primaryType": "nt:unstructured",
"path": "/content/mysite/fr/en/home",
"title": "CTA 1"
},
"item1": {
"jcr:primaryType": "nt:unstructured",
"path": "/content/mysite/fr/en/discover",
"title": "CTA 2"
}
},
"type": "mysite/components/extendedimage"
}
}
Links & Downloads
- Core Components Releases
- Core Components Library
- Image Core Component
- Parameterized Namespace Granite Include
- Child Resource From Request Injector
- JCR Package Manager
Credits
Thanks to Niek Raaijmakers for figuring some of this out :)
